SINGLE-PHASE TRANSFORMERS
SINGLE-PHASE TRANSFORMERS

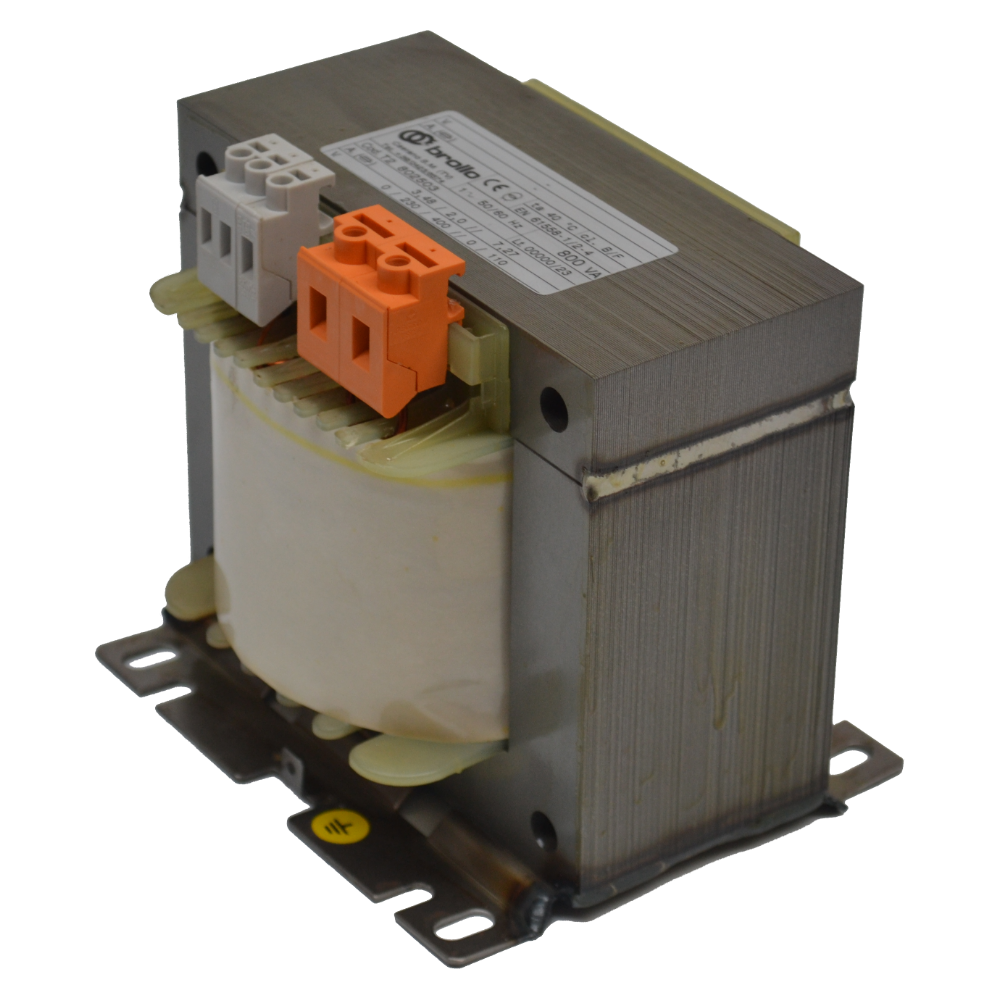

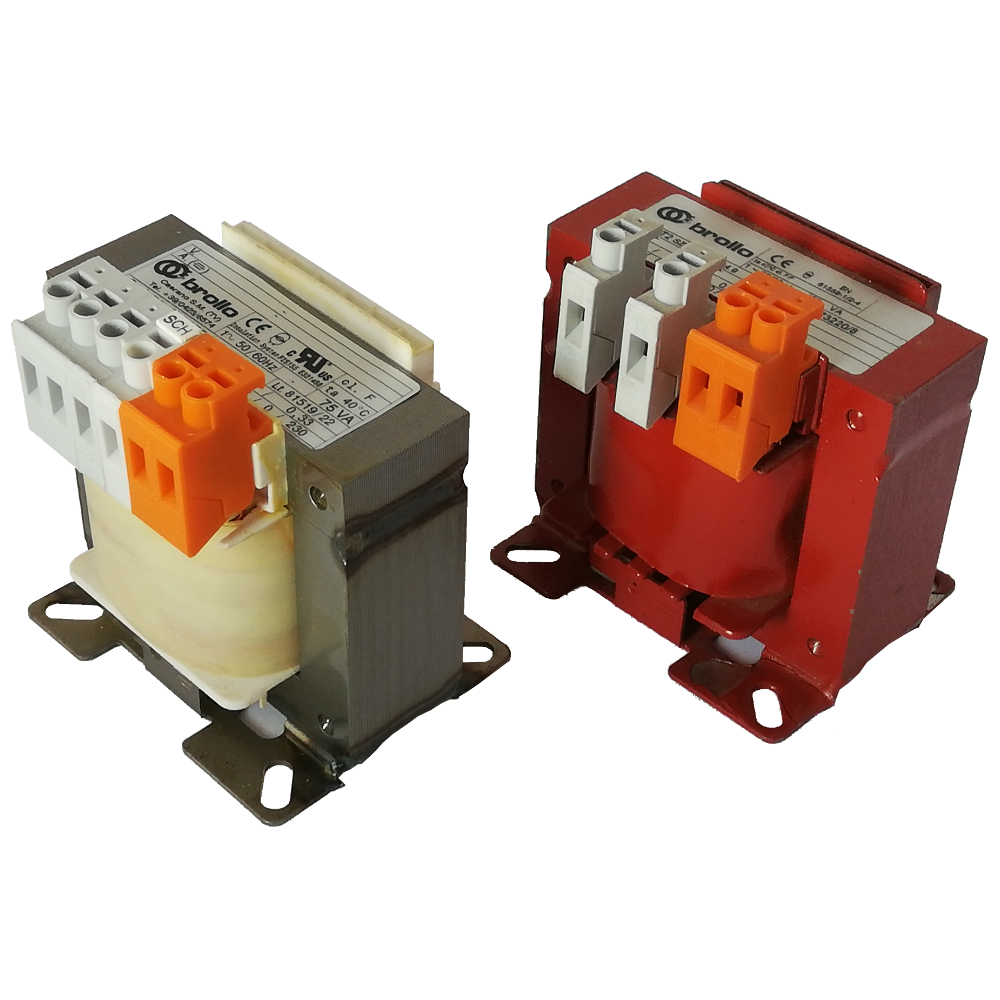

Single-phase isolation transformers for general use
Technical features
Standard executions in the catalogue:
- Single-phase isolation transformers (EN 61558-1/2-4)
- single-phase insulation and safety (EN 61558-1 / 2-6)
- 80 series execution in class B
- continuous service with ambient temperature 40°C
- 60 series execution in class F
- continuous service with ambient temperature 25°C
- Other features as per downloadable technical data sheets
Customization
Customized executions or based on customer drawings with:
- Copper or aluminum windings
- Power up to 30kVA
- Voltages up to 1000V and frequency 50/60Hz
- Regulation sockets on both primary and secondary
- One or more secondary windings
- Fuse terminals
- Electrostatic screen
- Thermal protectors inserted in the windings
- Treatment for humid saline climates
- cURus Insulation System FIS155 File E321488
- Protection box
